A magnetic stirrer is a simple yet powerful tool used in laboratories. It helps in mixing liquids without the need for manual stirring. Scientists, students, and lab workers use it to make sure liquids are mixed evenly. You will find a magnetic stirrer in many science labs, from schools to large research centers.
The magnetic stirrer is especially useful when you need to stir liquids for a long time or when the mixture needs to stay clean. Because there is no direct contact with the liquid, there’s less chance of contamination. It’s an ideal tool for chemistry, biology, and other science fields.

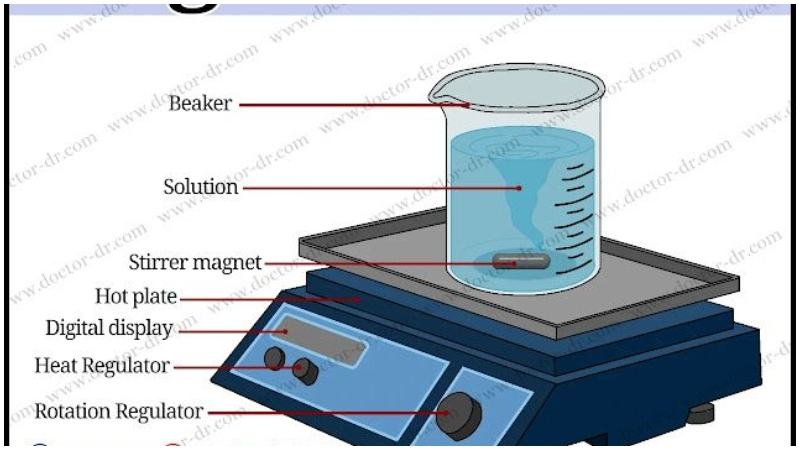

The Parts of a Magnetic Stirrer
To understand how it works, let’s first look at its parts. A magnetic stirrer has two main components:
The Stirring Plate:
This is the base of the device. It has a motor and a magnet inside. Some models also have a built-in heater.
The Stir Bar:
This is a small, magnetic bar that is placed inside the liquid. It is coated with a material like Teflon to make it easy to clean and safe to use.
When the motor turns the magnet inside the base, it causes the stir bar in the liquid to spin. This spinning motion stirs the liquid smoothly and evenly.
Types of Magnetic Stirrers
There are several types of magnetic stirrers. Each is designed for different kinds of tasks. Here are some common types:
1. Basic Magnetic Stirrer
This type is used for simple mixing tasks. It has a single spinning magnet and is ideal for small volumes of liquid.
2. Magnetic Stirrer with Hot Plate
This stirrer can also heat the liquid while stirring it. It is useful when you need to warm up a solution as it mixes.
3. Multi-Position Stirrer
This device has more than one stirring plate. It lets you stir many containers at the same time. It is good for labs where lots of samples are handled at once.
4. Heavy-Duty Stirrer
This stirrer is made for thick or sticky liquids. It has a stronger motor and can stir larger volumes of solution.
Where Are Magnetic Stirrers Used?
A magnetic stirrer is used in many different settings. Let’s look at some common places:
1. Science Laboratories
Most chemistry and biology labs use magnetic stirrers. They help in mixing chemical solutions, testing samples, or preparing culture media.
2. Medical and Pharmaceutical Labs
Pharmacists use them to mix liquid medicines or test drug reactions. It helps in making sure that every ingredient is mixed well.
3. Food and Beverage Industry
Some food labs use magnetic stirrers to test drink samples. This helps ensure quality control.
4. Environmental Testing
Labs that test soil and water use stirrers to mix samples before testing for pollution or other harmful elements.
Benefits of Using a Magnetic Stirrer
There are many reasons why scientists choose magnetic stirrers:
1. Clean and Safe
Since the stir bar is the only part that touches the liquid, it reduces the risk of contamination. The stir bar can be cleaned or replaced easily.
2. Hands-Free Operation
Once the stirrer is set up, it works on its own. This allows the lab worker to focus on other tasks at the same time.
3. Long-Lasting Use
A magnetic stirrer is strong and lasts a long time. It needs little maintenance and is easy to store.
4. Precise Control
You can control the speed of stirring. Some advanced models also allow you to control the temperature.
Tips for Using a Magnetic Stirrer
To get the best results, follow these simple tips:
Choose the right size of stir bar. If it’s too big or too small, it won’t spin well.
Make sure the container is flat-bottomed. This helps the stir bar stay centered.
Do not use containers made of magnetic materials. They can interfere with the stir bar’s motion.
Always clean the stir bar after use. This keeps it working well for a long time.
How to Choose the Right Magnetic Stirrer
Not all stirrers are the same. Here’s what to check before buying one:
Volume Capacity:
Make sure it can handle the amount of liquid you usually work with.
Speed Range:
Some tasks need slow stirring, while others need fast mixing.
Heating Option:
If you need to heat liquids, go for a model with a hot plate.
Durability:
A good stirrer should last for years with proper care.
Common Problems and Fixes
Even a good tool can face small issues. Here are some common ones:
1. Stir Bar Doesn’t Spin
Check if the stir bar is stuck or too large. Also, ensure the plate is flat and clean.
2. Noisy Operation
This could mean the motor is dirty or worn. Clean it carefully or check the manufacturer’s guide.
3. Uneven Stirring
Try adjusting the speed or using a different container. Sometimes a non-flat base can cause wobbling.
Future of Magnetic Stirrers
Technology is improving fast. Modern magnetic stirrers are becoming more advanced. Some new features include digital controls, timers, and remote operation. These tools are also becoming more energy-efficient. In the future, magnetic stirrers maybe even smaller, smarter, and easier to use.
Conclusion
In science and industry, the magnetic stirrer is an important tool. It helps in clean, easy, and accurate mixing of liquids. Whether in a school lab or a high-tech facility, magnetic stirrers save time and improve results. With the right care and use, they can be a reliable part of your lab work for many years.
